High density 30/50

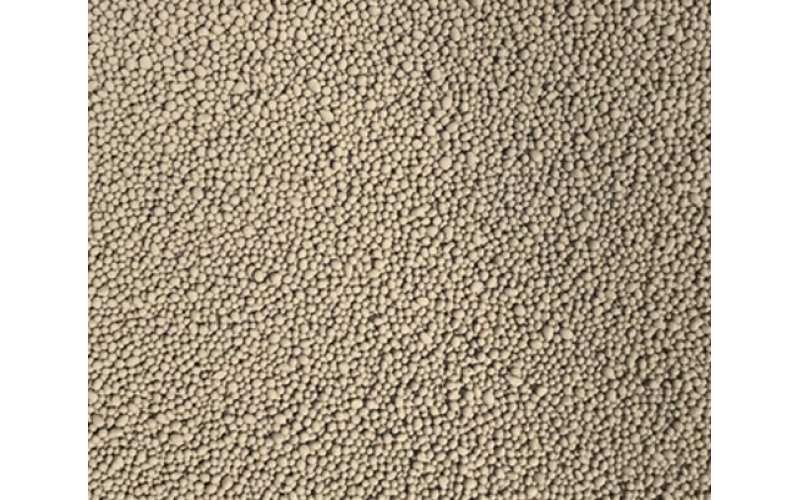

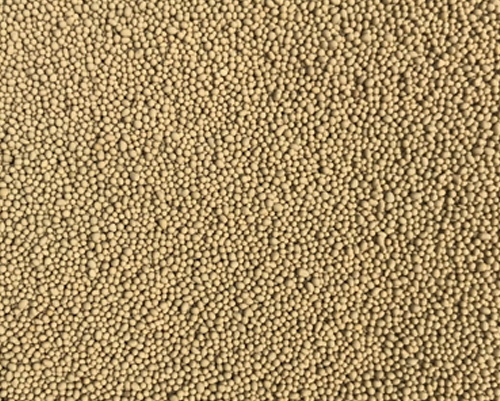

High density ceramic proppant ,oil fracturing proppant
- Model： 30-50
Shanxi AnYiCheng New Material manufacture Co.,Ltd is located in Libi village of Yangquan city.The main production in line with international API and domestic SY/T5108, SY/6302 standard fracturing ceramic proppant products. The annual output of 35,000 tons.
Size | Ultra low density ceramsite sand | Ultra low density ceramsite sand | Ultra low density ceramsite sand |
Particle size range | 850μm-425μm（20/40） | 600μm-300μm（30/50） | 425μm-212μm（40/70） |
Density | ≤1.50 | ≤1.50 | ≤1.50 |
Crushing capacity | 52MPa≤5 | 52MPa≤5 | 52MPa≤5 |
69MPa≤9 | 69MPa≤8 | 69MPa≤7 | |
Roundness | ＞0.80 | ＞0.80 | ＞0.80 |
Sphericity | ＞0.80 | ＞0.80 | ＞0.80 |
*The above standards are in accordance with ISO 13503-2:2006 | |||
Size | Ultra low density ceramsite sand | Ultra low density ceramsite sand | Ultra low density ceramsite sand |
Particle size range | 850μm-425μm（20/40） | 600μm-300μm（30/50） | 425μm-212μm（40/70） |
Density | ≤1.50 | ≤1.50 | ≤1.50 |
Crushing capacity | 52MPa≤5 | 52MPa≤5 | 52MPa≤5 |
69MPa≤9 | 69MPa≤8 | 69MPa≤7 | |
Roundness | ＞0.80 | ＞0.80 | ＞0.80 |
Sphericity | ＞0.80 | ＞0.80 | ＞0.80 |
*The above standards are in accordance with ISO 13503-2:2006 | |||
1.0ton / bag, 1.3tons/bag ,1.5tons/bag , or as guest's request
